PMQ Paper Mill Quality Butt Weld Fittings
Robert-James Sales, Inc.
Robert-James Sales, Inc.
Butt Weld Fittings


• 90° Elbows LR
• 45° Elbows LR
• Tees
• 45° Laterals
• Wyes
• Cone Reducers
• Tangent Reducers
• Standard Stub Ends
• Angle Stub Ends
Metal to Metal Connectors
• Stub Ends
• Flanges
• Belled Connectors
• Weld Caps
• Quick Clamps
• Face Rings
• Ductile Iron Back Up Flanges
• Stainless Steel Plate Flanges
  • Manufactured in accordance to ASTM A-774 specifications.
  • Sizes larger than 36” available on request.
  • Manufactured to MSS dimensions.
  • Special lengths available on request.
  • O.D. and wall thickness are given in inches.
  • PRECISION MACHINED SURFACES between male and female shoulders holds inside of connection in
    alignment.
  • HEAVY FERRULES - No warpage.
  • METAL TO METAL SEATING - No gasket protrusion to
    restrict flow.
  • ADAPTERS AVAILABLE - Convert Flanges on pumps
    and valves to mate with metal to metal connectors.

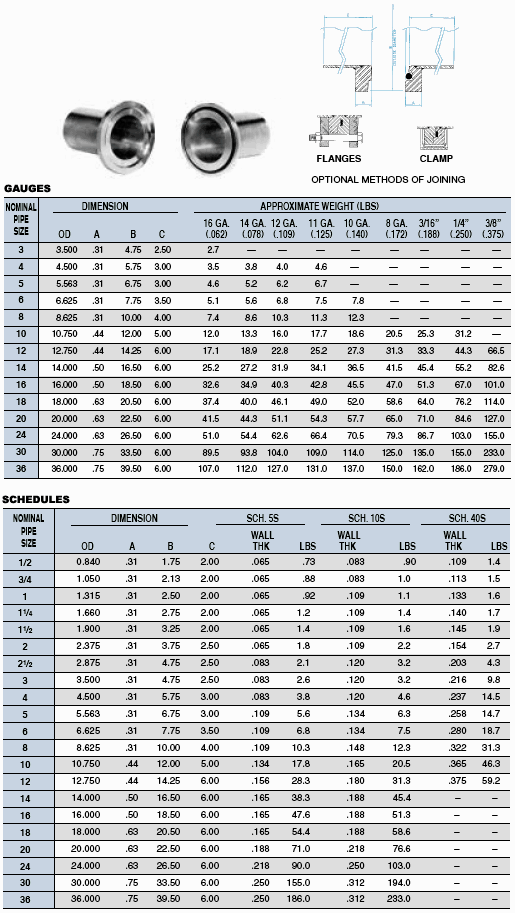

A Metal to Metal Connector consists of 1 pair of stub ends (1 male and 1 female) and a 1/8” dia. 60 durometer neoprene O-ring.

Metal to Metal Connectors can be joined by means of a Quick Opening Clamp or by using 2 standard Back Up Flanges.
