Centrifugal Pumps
Sanitary   Fittings Tubes Valves Diaphragm Valves Centrifugal Pumps Filters & Strainers



Waukesha Cherry-Burrell Products:
"C" Series Centrifugal Pumps

The versatile Waukesha "C" Series close-coupled pump replaces the Puriti "C" Series pump. This pump offers strong performance and competitive price/value within the lower spectrum of heavy-duty, centrifugal pump applications. It can be installed in a series without fear of seal failure from elevated inlet pressures, even with viscous products.

  • Hydraulic balancing reduces pressure at sealing surface for less wear, greater efficiency
  • Easy-cleaning, open type impeller delivers smooth pumping performance
  • Enlarged inlets available for larger suction lines
  • Standard CIP capability
  • Pump and parts are interchangeable with other C-Series brands

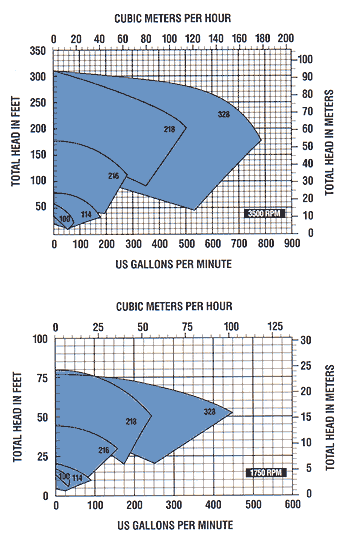

MODEL

INLET

OUTLET

MAXIMUM IMPELLER SIZE

MAXIMUM CAPACITY MAXIMUM HEAD
1750 RPM 3500 RPM 1750 RPM 3500 RPM
C100 1-1/2"
(38mm) 		1"
(25mm) 		3.68"
(93mm) 		33 GPM
(7 m3/hr.)		 73 GPM
(17 m3/hr.)		 17 ft.
(5 m)		 55 ft.
(17 m)
C114 1-1/2"
(38mm) 		1-1/2"
(38mm) 		4.00"
(102mm) 		74 GPM
(17 m3/hr.)		 148 GPM
(34 m3/hr.)		 18 ft.
(5 m)		 74 ft.
(23 m)
C114 2"
(51mm) 		1-1/2"
(38mm) 		4.00"
(102mm) 		84 GPM
(19 m3/hr.)		 180 GPM
(41 m3/hr.)		 17 ft.
(5 m)		 69 ft.
(21 m)
C216 2"
(51mm) 		1-1/2"
(38mm) 		6.00"
(152mm) 		145 GPM
(33 m3/hr.)		 280 GPM
(64 m3/hr.)		 42 ft.
(13 m)		 169 ft.
(52 m)
C216 2½"
(64mm) 		1-1/2"
(38mm) 		6.00"
(152mm) 		168 GPM
(38 m3/hr.)		 280 GPM
(64 m3/hr.)		 42 ft.
(13 m)		 169 ft.
(52 m)
C218 2"
(51mm) 		1-1/2"
(38mm) 		8.00"
(203mm) 		217 GPM
(49 m3/hr.)		 300 GPM
(68 m3/hr.)		 76 ft.
(23 m)		 317 ft.
(97 m)
C218 3"
(76mm) 		1-1/2"
(38mm) 		8.00"
(203mm) 		230 GPM
(52 m3/hr.)		 305 GPM
(69 m3/hr.)		 76 ft.
(23 m)		 474 ft.
(144 m)
C328 3"
(76mm) 		2"
(51mm) 		8.00"
(203mm) 		416 GPM
(94 m3/hr.)		 635 GPM
(144 m3/hr.)		 74 ft.
(23 m)		 304 ft.
(93 m)
C328 4"
(102mm) 		2"
(51mm) 		8.00"
(203mm) 		460 GPM
(104 m3/hr.)		 900 GPM
(204 m3/hr.)		 74 ft.
(23 m)		 313 ft.
(95 m)




MECHANICAL SPECS



STANDARD CONSTRUCTION:
Casing: 316SS
Backplate: 316SS
Impeller: 316SS
Part Connection: S-Line Standard; I-Line Female, Bevel Seat threaded or NPT (Male or Female) are optional

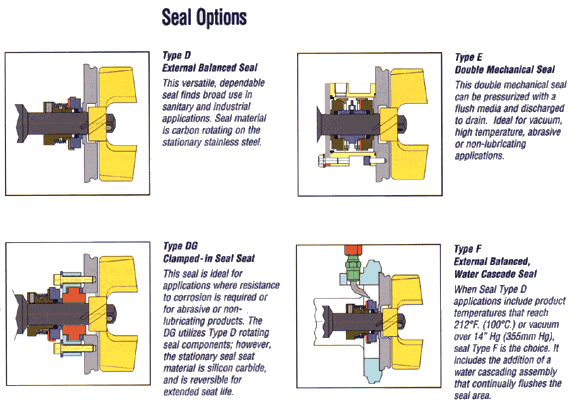

Seal Type: Type D Seal, external balanced (standard)
Type F Seal (Type D with Cascade Seal Flush)
Type DG Seal (clamped in seal/seat)
Type E Seal (double mechanical)
Note: DG, F and E seal not available on C-100
Rotary Seal Material: Carbon (standard)
Silicon Carbide & Tungsten Carbide (optional)
DG Seal Seat Material: Silicon Carbide (standard)
Purebide, Ceramic & Tungsten Carbide (optional)
Elastomers: Buna (standard) or Fluroelastemer (optional)
Finish: Sanitary Polish 32RA (150 Grit)
Mounting: Pump head mounted to C-face motor, leg kit optional

PERFORMANCE CHARACTERISTICS:
Nominal Capacity: To 780 GPM
Temperatures: To 212°F
Nominal Speed Range:
1450 or 2900 RPM-50HZ
1750 or 3500 RPM-60HZ

MOTOR:
Standard C-face; 3 phase, 230/460 volts; 1750 and 3500 RPM; TEFC and Washdown Duty, Foot Mounted. Other motor types upon request
