WCB Tube Butt-Weld Fittings are available in size 1/2" to 12" O.D. They are designed for use with light wall tubing and can be furnished in either TP304 or TP316L stainess steel.
They should be used where corrosion resistance at low pressures in non-sanitary installations are required.

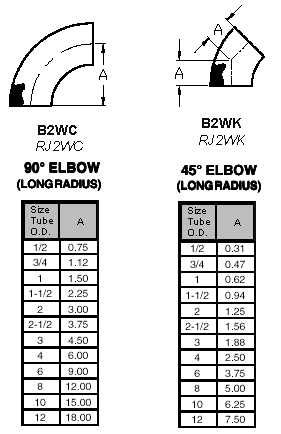

Nominal wall thickness for fittings in this section are 1/2" to 3" - .065 wall, 4" - .083 wall, 6" to 8" - .109 wall, 10" to 12" - .134 wall.
