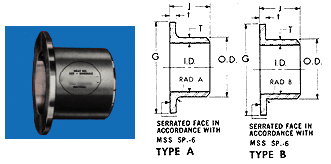

Stub Ends - Short Type
Select Schedule:
5S - Featherweight
10S - Light I.P.S.
40S - Standard I.P.S.

** Approx. weight is for stainless steel
For nickel alloys, multiply by 1.12
For aluminum alloys, multiply by .33

 Stainless Steels: Types 304, 304L, 304H, 316, 316L, 316H
Inco Alloys: Monel 400, Nickel 200
Aluminum Alloys: Types 3003-F, 6061-T6
Other Alloys: Inquire

Schedule 5S
Stainless steel alloys only

Nominal
pipe
size
Outside
diameter
(O.D.)
Schedule 5S
Diameter
  (G)
Length
(J)
Radius
Type A
 Radius
Type B
Inside
diameter
Wall
thickness
(T)
Lap
thickness
(t)
Approx.
weight **
1/2
   .840
1-3/8
2
1/8
1/32
  .710
.065
.065
   .14
3/4
  1.050
1-11/16
2
1/8
1/32
  .920
.065
.065
   .18
1
  1.315
2
2
1/8
1/32
 1.185
.065
.065
   .25
1-1/4
  1.660
2-1/2
2
3/16
1/32
 1.530
.065
.065
   .39
1-1/2
  1.900
2-7/8
2
1/4
1/32
 1.770
.065
.065
   .41
2
  2.375
3-5/8
2-1/2
5/16
1/32
 2.245
.065
.065
   .71
2-1/2
  2.875
4-1/8
2-1/2
5/16
1/32
 2.709
.083
.083
   .95
3
  3.500
5
2-1/2
3/8
1/32
 3.334
.083
.083
  1.23
3-1/2
  4.000
5-1/2
3
3/8
1/32
 3.834
.083
.083
  1.63
4
  4.500
6-3/16
3
7/16
1/32
 4.334
.083
.083
  1.90
5
  5.563
7-5/16
3
7/16
1/16
 5.345
.109
.109
  2.80
6
  6.625
8-1/2
3-1/2
1/2
1/16
 6.407
.109
.109
  3.88
8
  8.625
10-5/8
4
1/2
1/16
 8.407
.109
.109
  5.90
10
 10.750
12-3/4
5
1/2
1/16
10.482
.134
.134
  8.90
12
 12.750
15
6
1/2
1/16
12.438
.156
.156
 15.30
14
 14.000
16-1/4
6
1/2
1/16
13.688
.156
.156
 19.00
16
 16.000
18-1/2
6
1/2
1/16
15.670
.165
.165
 25.00
18
 18.000
21
6
1/2
1/16
17.670
.165
.165
 34.00
20
 20.000
23
6
1/2
1/16
19.624
.188
.188
 43.00
24
 24.000
27-1/4
6
1/2
1/16
23.564
.218
.218
 57.00


Schedule 10S
Stainless steel, Nickel & Aluminum alloys

Nominal
pipe
size
Outside
diameter
(O.D.)
Schedule 10S
Diameter
  (G)
Length
(J)
Radius
Type A
 Radius
Type B
Inside
diameter
Wall
thickness
(T)
Lap
thickness
(t)
Approx.
weight **
1/2
   .840
1-3/8
2
1/8
1/32
  .674
.083
.083
   .16
3/4
  1.050
1-11/16
2
1/8
1/32
  .884
.083
.083
   .21
1
  1.315
2
2
1/8
1/32
 1.097
.109
.109
   .35
1-1/4
  1.660
2-1/2
2
3/16
1/32
 1.442
.109
.109
   .49
1-1/2
  1.900
2-7/8
2
1/4
1/32
 1.682
.109
.109
   .56
2
  2.375
3-5/8
2-1/2
5/16
1/32
 2.157
.109
.109
   .94
2-1/2
  2.875
4-1/8
2-1/2
5/16
1/32
 2.635
.120
.120
  1.25
3
  3.500
5
2-1/2
3/8
1/32
 3.260
.120
.120
  1.60
3-1/2
  4.000
5-1/2
3
3/8
1/32
 3.760
.120
.120
  1.90
4
  4.500
6-3/16
3
7/16
1/32
 4.260
.120
.120
  2.40
5
  5.563
7-5/16
3
7/16
1/16
 5.295
.134
.134
  3.25
6
  6.625
8-1/2
3-1/2
1/2
1/16
 6.357
.134
.134
  4.75
8
  8.625
10-5/8
4
1/2
1/16
 8.329
.148
.148
  7.10
10
 10.750
12-3/4
5
1/2
1/16
10.420
.165
.165
 11.30
12
 12.750
15
6
1/2
1/16
12.390
.180
.180
 18.00
14
 14.000
16-1/4
6
1/2
1/16
13.624
.188
.188
 24.00
16
 16.000
18-1/2
6
1/2
1/16
15.624
.188
.188
 28.00
18
 18.000
21
6
1/2
1/16
17.624
.188
.188
 38.00
20
 20.000
23
6
1/2
1/16
19.564
.218
.218
 48.00
24
 24.000
27-1/4
6
1/2
1/16
23.500
.250
.250
 60.00


Schedule 40S
Stainless steel, Nickel & Aluminum alloys

Nominal
pipe
size
Outside
diameter
(O.D.)
Schedule 40S
Diameter
  (G)
Length
(J)
Radius
Type A
 Radius
Type B
Inside
diameter
Wall
thickness
(T)
Lap
thickness
(t)
Approx.
weight **
1/2
   .840
1-3/8
2
1/8
1/32
  .622
.109
.109
   .19
3/4
  1.050
1-11/16
2
1/8
1/32
  .824
.113
.113
   .26
1
  1.315
2
2
1/8
1/32
 1.049
.133
.133
   .38
1-1/4
  1.660
2-1/2
2
3/16
1/32
 1.380
.140
.140
   .55
1-1/2
  1.900
2-7/8
2
1/4
1/32
 1.610
.145
.145
   .69
2
  2.375
3-5/8
2-1/2
5/16
1/32
 2.067
.154
.154
  1.35
2-1/2
  2.875
4-1/8
2-1/2
5/16
1/32
 2.469
.203
.203
  1.77
3
  3.500
5
2-1/2
3/8
1/32
 3.068
.216
.216
  2.50
3-1/2
  4.000
5-1/2
3
3/8
1/32
 3.548
.226
.226
  3.58
4
  4.500
6-3/16
3
7/16
1/32
 4.026
.237
.237
  4.13
5
  5.563
7-5/16
3
7/16
1/16
 5.047
.258
.258
  6.15
6
  6.625
8-1/2
3-1/2
1/2
1/16
 6.065
.280
.280
  7.88
8
  8.625
10-5/8
4
1/2
1/16
 7.981
.322
.322
 13.38
10
 10.750
12-3/4
5
1/2
1/16
10.020
.365
.365
 22.20
12
 12.750
15
6
1/2
1/16
12.000
.375
.375
 31.50
14
 14.000
16-1/4
6
1/2
1/16
13.250
.375
.375
 37.80
16
 16.000
18-1/2
6
1/2
1/16
15.250
.375
.375
 45.00
18
 18.000
21
6
1/2
1/16
17.250
.375
.375
 60.00
20
 20.000
23
6
1/2
1/16
19.250
.375
.375
 66.00
24
 24.000
27-1/4
6
1/2
1/16
23.250
.375
.375
 85.00
