Butt Weld Fittings


Elbows
90° Long Radius
90° Reducing Long Radius
90° Short Radius
45° Long Radius
180° Return bend

Stub ends
Short type
Long type
As Formed

Tees
Straight
Reducing

Crosses
Straight
Reducing

Caps
Caps

Reducers
Concentric/Eccentric

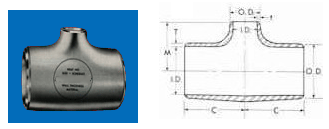

Tees - Reducing
Select Schedule:
5S - Featherweight
10S - Light I.P.S.
40S - Standard I.P.S.
80S - Extra Heavy I.P.S.
160
XX Strong Wall

** Approx. weight is for stainless steel
For nickel alloys, multiply by 1.12
For aluminum alloys, multiply by .33

 Stainless Steels: Types 304, 304L, 304H, 316, 316L, 316H
Inco Alloys: Monel 400, Nickel 200
Aluminum Alloys: Types 3003-F, 6061-T6
Other Alloys: Inquire

Schedule 5S
Stainless steel alloys only

Nominal
Pipe
Size
Run X Outlet
Outside
Diameter
Run
Outside
Diameter
Outlet
Center
to End
Run
Center
to End
Outlet
Inside
Diameter
Run
Inside
Diameter
Outlet
Wall
Thickness
Run
Wall
Thickness
Outlet
Approximate
Weight **
(O.D.)
(O.D)
(C)
(M)
(I.D.)
(I.D.)
(T)
(t)
1/2 x 1/4
.840
.540
1
1
.710
.410
.065
.065
.16
1/2 x 3/8
.840
.675
1
1
.710
.545
.065
.065
.17
3/4 x 3/8
1.050
.675
1-1/8
1-1/8
.920
.545
.065
.065
.19
3/4 x 1/2
1.050
.840
1-1/8
1-1/8
.920
.710
.065
.065
.20
1 x 3/8
1.315
.675
1-1/2
1-1/2
1.185
.545
.065
.065
.34
1 x 1/2
1.315
.840
1-1/2
1-1/2
1.185
.710
.065
.065
.35
1 x 3/4
1.315
1.050
1-1/2
1-1/2
1.185
.920
.065
.065
.36
1-1/4 x 1/2
1.660
.840
1-7/8
1-7/8
1.530
.710
.065
.065
.64
1-1/4 x 3/4
1.660
1.050
1-7/8
1-7/8
1.530
.920
.065
.065
.66
1-1/4 x 1
1.660
1.315
1-7/8
1-7/8
1.530
1.185
.065
.065
.68
1-1/2 x 1/2
1.900
.840
2-1/4
2-1/4
1.770
.710
.065
.065
.81
1-1/2 x 3/4
1.900
1.050
2-1/4
2-1/4
1.770
.920
.065
.065
.82
1-1/2 x 1
1.900
1.315
2-1/4
2-1/4
1.770
1.185
.065
.065
.83
1-1/2 x 1-1/4
1.900
1.660
2-1/4
2-1/4
1.770
1.530
.065
.065
.85
2 x 3/4
2.375
1.050
2-1/2
1-3/4
2.245
.920
.065
.065
1.02
2 x 1
2.375
1.315
2-1/2
2
2.245
1.185
.065
.065
1.03
2 x 1-1/4
2.375
1.660
2-1/2
2-1/4
2.245
1.530
.065
.065
1.05
2 x 1-1/2
2.375
1.900
2-1/2
2-3/8
2.245
1.770
.065
.065
1.08
2-1/2 x 1
2.875
1.315
3
2-1/4
2.709
1.185
.083
.065
1.83
2-1/2 x 1-1/4
2.875
1.660
3
2-1/2
2.709
1.530
.083
.065
1.85
2-1/2 x 1-1/2
2.875
1.900
3
2-5/8
2.709
1.770
.083
.065
1.89
2-1/2 x 2
2.875
2.375
3
2-3/4
2.709
2.245
.083
.065
1.93
3 x 1
3.500
1.315
3-3/8
2-5/8
3.334
1.185
.083
.065
2.85
3 x 1-1/4
3.500
1.660
3-3/8
2-3/4
3.334
1.530
.083
.065
2.89
3 x 1-1/2
3.500
1.900
3-3/8
2-7/8
3.334
1.770
.083
.065
2.93
3 x 2
3.500
2.375
3-3/8
3
3.334
2.245
.083
.065
2.99
3 x 2-1/2
3.500
2.875
3-3/8
3-1/4
3.334
2.709
.083
.083
3.06
3-1/2 x 1-1/2
4.000
1.900
3-3/4
3-1/8
3.834
1.770
.083
.065
4.67
3-1/2 x 2
4.000
2.375
3-3/4
3-1/4
3.834
2.245
.083
.065
4.73
3-1/2 x 2-1/2
4.000
2.875
3-3/4
3-1/2
3.834
2.709
.083
.083
4.84
3-1/2 x 3
4.000
3.500
3-3/4
3-5/8
3.834
3.334
.083
.083
4.95
4 x 1-1/2
4.500
1.900
4-1/8
3-3/8
4.334
1.770
.083
.065
6.05
4 x 2
4.500
2.375
4-1/8
3-1/2
4.334
2.245
.083
.065
6.12
4 x 2-1/2
4.500
2.875
4-1/8
3-3/4
4.334
2.709
.083
.083
6.19
4 x 3
4.500
3.500
4-1/8
3-7/8
4.334
3.334
.083
.083
6.33
4 x 3-1/2
4.500
4.000
4-1/8
4
4.334
3.834
.083
.083
6.48
5 x 2
5.563
2.375
4-7/8
4-1/8
5.345
2.245
.109
.065
10.92
5 x 2-1/2
5.563
2.875
4-7/8
4-1/4
5.345
2.709
.109
.083
11.05
5 x 3
5.563
3.500
4-7/8
4-3/8
5.345
3.334
.109
.083
11.18
5 x 3-1/2
5.563
4.000
4-7/8
4-1/2
5.345
3.834
.109
.083
11.44
5 x 4
5.563
4.500
4-7/8
4-5/8
5.345
4.334
.109
.083
11.70
6 x 2-1/2
6.625
2.875
5-5/8
4-3/4
6.407
2.709
.109
.083
14.48
6 x 3
6.625
3.500
5-5/8
4-7/8
6.407
3.334
.109
.083
14.62
6 x 3-1/2
6.625
4.000
5-5/8
5
6.407
3.834
.109
.083
14.79
6 x 4
6.625
4.500
5-5/8
5-1/8
6.407
4.334
.109
.083
15.13
6 x 5
6.625
5.563
5-5/8
5-3/8
6.407
5.345
.109
.109
15.48
8 x 3
8.625
3.500
7
6
8.407
3.334
.109
.083
26.04
8 x 3-1/2
8.625
4.000
7
6
8.407
3.834
.109
.083
26.35
8 x 4
8.625
4.500
7
6-1/8
8.407
4.334
.109
.083
26.66
8 x 5
8.625
5.563
7
6-3/8
8.407
5.345
.109
.109
27.28
8 x 6
8.625
6.625
7
6-5/8
8.407
6.407
.109
.109
27.90
10 x 4
10.750
4.500
8-1/2
7-1/4
10.482
4.334
.134
.083
46.75
10 x 5
10.750
5.563
8-1/2
7-1/2
10.482
5.345
.134
.109
47.30
10 x 6
10.750
6.625
8-1/2
7-5/8
10.482
6.407
.134
.109
48.40
10 x 8
10.750
8.625
8-1/2
8
10.482
8.407
.134
.109
49.50
12 x 5
12.750
5.563
10
8-1/2
12.438
5.345
.156
.109
70.55
12 x 6
12.750
6.625
10
8-5/8
12.438
6.407
.156
.109
71.38
12 x 8
12.750
8.625
10
9
12.438
8.407
.156
.109
73.04
12 x 10
12.750
10.750
10
9-1/2
12.438
10.482
.156
.134
74.70
14 x 6
14.000
6.625
11
9-3/8
13.688
6.407
.156
.109
75.65
14 x 8
14.000
8.625
11
9-3/4
13.688
8.407
.156
.109
76.54
14 x 10
14.000
10.750
11
10-1/8
13.688
10.482
.156
.134
78.32
14 x 12
14.000
12.750
11
10-5/8
13.688
12.438
.156
.156
80.10
16 x 6
16.000
6.625
12
10-3/8
15.670
6.407
.165
.109
96.60
16 x 8
16.000
8.625
12
10-3/4
15.670
8.407
.165
.109
97.75
16 x 10
16.000
10.750
12
11-1/8
15.670
10.482
.165
.134
98.90
16 x 12
16.000
12.750
12
11-5/8
15.670
12.438
.165
.156
101.00
16 x 14
16.000
14.000
12
12
15.670
13.688
.165
.156
103.00
18 x 8
18.000
8.625
13-1/2
11-3/4
17.670
8.407
.165
.109
125.00
18 x 10
18.000
10.750
13-1/2
12-1/8
17.670
10.482
.165
.134
126.00
18 x 12
18.000
12.750
13-1/2
12-5/8
17.670
12.438
.165
.156
128.00
18 x 14
18.000
14.000
13-1/2
13
17.670
13.688
.165
.156
131.00
18 x 16
18.000
16.000
13-1/2
13
17.670
15.670
.165
.165
134.00
20 x 8
20.000
8.625
15
12-3/4
19.624
8.407
.188
.109
141.00
20 x 10
20.000
10.750
15
13-1/8
19.624
10.482
.188
.134
143.00
20 x 12
20.000
12.750
15
13-5/8
19.624
12.438
.188
.156
145.00
20 x 14
20.000
14.000
15
14
19.624
13.688
.188
.156
147.00
20 x 16
20.000
16.000
15
14
19.624
15.670
.188
.165
150.00
20 x 18
20.000
18.000
15
14-1/2
19.624
17.670
.188
.165
154.00
24 x 10
24.000
10.750
17
15-1/8
23.564
10.482
.218
.134
247.00
24 x 12
24.000
12.750
17
15-5/8
23.564
12.438
.218
.156
250.00
24 x 14
24.000
14.000
17
16
23.564
13.688
.218
.156
253.00
24 x 16
24.000
16.000
17
16
23.564
15.670
.218
.165
256.00
24 x 18
24.000
18.000
17
16-1/2
23.564
17.670
.218
.165
262.00
24 x 20
24.000
20.000
17
17
23.564
19.624
.218
.188
268.00

PIPE
ASTM A312 / ASME SA312
ASTM A358 / ASME SA358
ASTM A376 / ASME SA376
ASTM A778

TUBE
ASTM A213 / ASME SA213
ASTM A249 / ASME SA249
ASTM A269
ASTM A511
