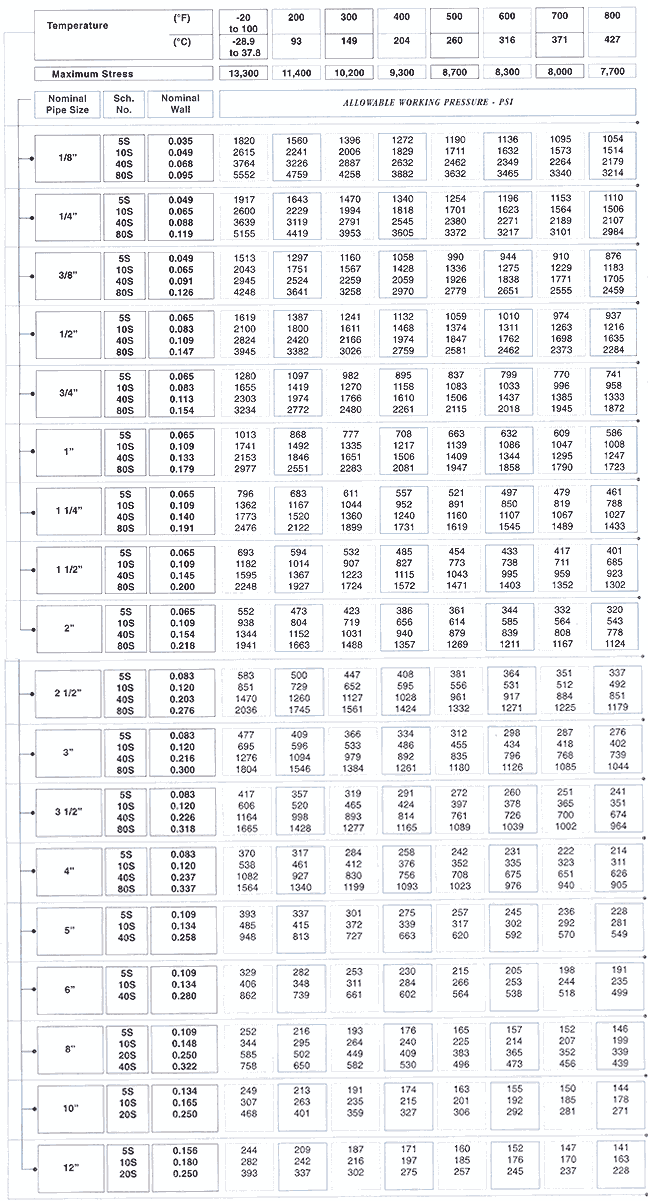

Main Pipe Menu Allowable Working Pressure (304L)
The allowable stress values used are shown in table A-3 of the ASME Code for Pressure Piping B31.1 1989 Edition for welded pipe to SA-312 with a weld joint efficiency of 0.85. Allowable working pressures shown reflect the minimum wall thickness.
