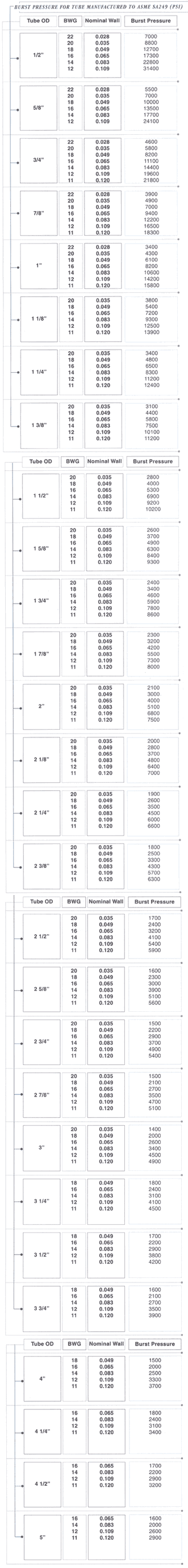

Burst Pressure ASTM A249/ ASME SA249
The values tabulated in the above table apply to types 304L, 316L in the temperature range of -20° F to 100° F.
For types 304, 309, 310, 316, 317, 321 multiply the above values by 76000/70000.
The above listed burst pressure is calculated using the following formula which conforms to ASME specification UG-27 and UG-31 (Burst Press=2eSt/D-0.8t), D-Outside Diameter, e-weld efficiency=.85, S-Tensile strength=75,000 psi, t-wall thinckness.
