The LOCXEND Model 59G butterfly valve offers economical, efficient, and reliable service for grooved end piping applications. It is easily installed with two grooved end couplings. LOCXEND butterfly valves are ideally suited for use in mechanical rooms, process lines, condenser water lines, demineralized water lines, and chilled and hot water lines.
The rugged ductile iron body is epoxy coated on all wetted surfaces and all surfaces exposed to the atmosphere. This provides both internal and external corrosion protection.

The EPDM encapsulation on the disc provides protection from chemical attack and erosion and also forms a bubble tight seal against the inside wall of the valve. O-rings in EPDM prevent atmospheric corrosion to internal parts.
The top flange is symmetric to accept many different manual or gear operators as well as electric, pneumatic, and hydraulic actuators. The extended neck allows ample room for insulation.

The EPDM encapsulated disc is designed to minimize turbulence and maximize good flow characteristics as well as provide positive sealing, protection against erosion and corrosion, and low sealing torque. The service temperature for EPDM is -20 degrees F (-29 degrees C) to 220 degrees F (104 degres C).

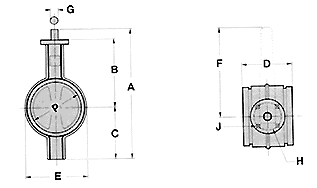

Size
A
B
C
D
E
F
G
H
J
P
Weights
Valve
handle
gear op.
2 in.
50 mm
7.9
201
3.9
99
3.0
76
3.19
81
2.9
74
8
203
.561
14.2
3.25
82.5
.266
6.763
2
51
3 lb.
1.36 kg
5 lb.
2.3 kg
7 lb.
3.2 kg
2-1/2"
65 mm
8.5
216
4.2
107
3.3
81
3.82
97
3.4
86
8
203
.561
14.2
3.25
82.5
.266
6.76
2.5
64
5 lb.
2.3 kg
7 lb.
3.2 kg
9 lb.
4.1 kg
3 in.
80 mm
8.9
226
4.4
112
3.5
89
3.82
97
4.1
104
8
203
.561
14.2
3.25
82.5
.266
6.76
3
80
6 lb.
2.7 kg
8 lb.
3.6 kg
10 lb.
4.5 kg
4 in.
100 mm
10.7
272
5.3
135
4.2
107
4.57
116
4.9
124
11
279
.686
17.4
3.25
82.5
.266
6.76
4
100
10 lb.
4.5 kg
12 lb.
5.4 kg
14 lb.
6.4 kg
5 in.
125 mm
11.7
297
5.8
147
4.7
119
5.83
148
6.1
155
11
279
.686
17.4
3.25
82.5
.266
6.76
5
127
18 lb.
8.2 kg
20 lb.
9.1 kg
22 lb.
10 kg
6 in.
150 mm
15.2
396
7.9
201
5.9
150
5.83
148
7.1
180
11
279
.811
20.6
3.25
82.5
.266
6.76
6
152
25 lb.
11.3 kg
27 lb.
12.2 kg
29 lb.
13.1 kg
8 in.
200 mm
16.5
419
8.0
203
6.9
175
524
133
9.1
231
16
406
.936
23.8
4.75
121
.562
14.3
8
203
30 lb.
13.6 kg
33 lb.
15 kg
36 lb.
16.3 kg
10 in.
250 mm
19.7
500
9.8
249
8.3
211
6.25
159
11.3
287
16
406
1.613
41
4.75
121
.562
14.3
10
254
58 lb.
26.3 kg
_
65 lb.
29.5 kg
12 in.
300 mm
22
559
10.80
274
9.6
244
6.50
165
13.3
388
16
406
1.247
31.7
4.75
121
5.62
14.3
12
305
77 lb.
34.9 kg
_
84 lb.
38.1 kg
